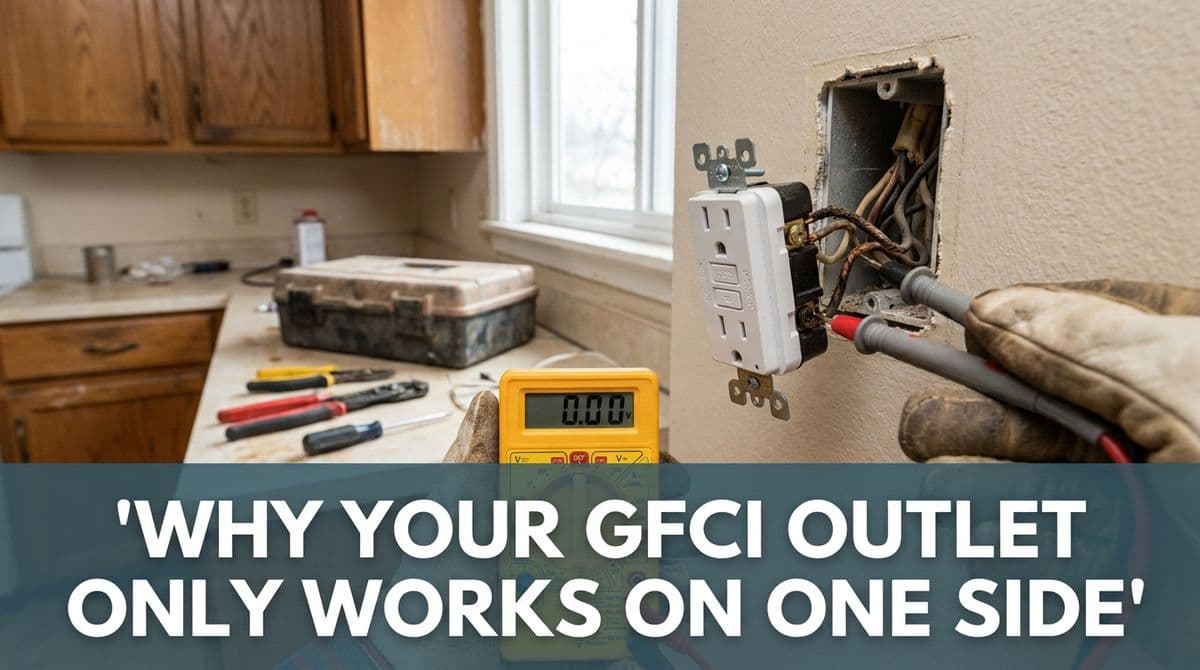

Why Your GFCI Outlet Only Works on One Side

When a “Half-Working” GFCI Outlet Makes No Sense

We recently got a call from a homeowner — let’s call him Mark — who was trying to help a friend figure out a really odd electrical problem. There was a brand-new GFCI outlet in the wall, but only one side of the outlet had power. The other side was dead and the reset button didn’t seem to fix anything.

Mark told us there were two black wires and two white wires on the outlet, and that “one black works and the other black don’t.” Another electrician had already swapped in a new GFCI and the problem hadn’t gone away. That’s when Mark called us to talk it through and we walked him step-by-step through what we usually see in cases like this.

Situations like Mark’s are exactly the kind of troubleshooting calls we get all the time. So we thought we’d share how we look at a “half-working” GFCI, what line vs. load really means, and when it’s time to put the tools down and call in a pro.

Why We See GFCI Outlets Only Working on One Side

Any time we hear, “Half of my GFCI works and half doesn’t,” we immediately start thinking about line/load wiring issues or miswired conductors. A properly wired GFCI receptacle shouldn’t have one hot side and one dead side — both plug slots should either be protected and working, or the device should trip off entirely.

With Mark, he mentioned that there were two cables coming into the box: two blacks and two whites. That tells us there’s likely one cable bringing power in from the panel (the line), and another cable taking power out to other outlets or lights (the load).

When those get crossed or mixed, we often see strange behavior like:

• One side of the outlet seems live, the other side is dead
• The test/reset buttons don’t do what they’re supposed to
• Downstream outlets aren’t protected or don’t work at all

From our experience in the field, if you’ve already replaced a GFCI with a brand-new one and the problem didn’t change, the device itself usually isn’t the culprit. The wiring is.

How We Explain Line vs. Load to Homeowners

On every standard GFCI receptacle we install, there are two sets of terminals: one marked LINE and one marked LOAD. When we’re on a job, we always slow down and show homeowners the difference, because it matters a lot.

Here’s how we think about it:

• LINE: This is the power coming in from your electrical panel. If these wires aren’t landed correctly, the GFCI won’t work properly at all.
• LOAD: This goes out to additional outlets, lights, or other devices that you want the GFCI to protect “downstream.”

In Mark’s situation, we suspected that at least one of the black (hot) and white (neutral) wires had been put on the wrong side, or that a hot and neutral might have been crossed. We told him what we tell every customer: the incoming hot and neutral must both be on the LINE terminals, and the outgoing pair must both be on the LOAD terminals if they’re being used.

When we’re on-site, we verify this with a voltage tester and by tracing which cable is actually feeding power in. That’s not something we recommend homeowners do themselves unless they’re very comfortable and know how to shut off and verify power safely.

How We Diagnose a Half-Working GFCI

When we get called out to a home with a GFCI issue like this, here’s how we typically approach it:

1. Turn off power and open the box. We shut off the correct breaker, confirm the power is off with a meter, and then pull the GFCI out of the box.
2. Identify the line cable. We determine which cable is bringing power from the panel. That pair of black/white must go on the LINE terminals.
3. Identify the load cable. If there’s a second cable feeding other outlets, we confirm it’s truly a load (not something else) and then land that pair on the LOAD side.
4. Check for crossed conductors. We look for any black wire tied to the wrong white, backstabbed connections, or loose terminations.
5. Test the device. Once everything is properly landed and safely reassembled, we restore power and test the GFCI, including any downstream receptacles it’s protecting.

In many homes, once we correct the line/load mix-up, the “one side works, one side doesn’t” complaint disappears, and both outlets function — and trip — the way they’re supposed to.

Common Wiring Mistakes We See in GFCI Circuits

Because we troubleshoot these issues regularly, we see the same problems over and over. Here are a few patterns we run into in customers’ homes:

• Line and load swapped: Power coming in is on the load side, and downstream circuits are on the line side, so the GFCI either won’t reset or won’t protect anything past it.
• Only one conductor moved: Someone moves the black wire to line but leaves the white neutral on load (or vice versa), causing very odd “half-working” symptoms.
• Loose connections: Backstabbed wires or loose screws can cause intermittent power on one side of the receptacle.
• Mixed circuits: We occasionally find two different circuits sharing a box, which should be handled very carefully or corrected for safety.

When we explain this at a customer’s kitchen counter or in a garage, they usually say, “No wonder it was acting so strange.” Once you understand how the device is designed, the weird symptoms start to make more sense.

Why GFCI Protection Matters in Wet Areas

All of this wiring detail has a bigger purpose: keeping you safe around water. We install GFCIs in:

• Kitchens (countertop outlets)
• Bathrooms
• Garages and basements
• Outdoor outlets and patio areas

A GFCI constantly compares the current going out on the hot wire to the current coming back on the neutral. If even a small amount is “leaking” somewhere else — like through a person to ground — the device trips in fractions of a second. That’s what reduces the risk of shock.

When we’re called out for a GFCI problem, our goal isn’t just to make the outlet work again; it’s to make sure every bathroom, kitchen, and outdoor circuit that should be protected actually is.

What You Can Safely Check Before Calling Us

We never want homeowners opening electrical boxes if they’re not comfortable, but there are a few simple checks you can do from the outside that help us when we arrive:

• Try the test/reset buttons: Firmly press “RESET,” then “TEST,” then “RESET” again. Note if either button feels stuck or does nothing.
• Check other outlets in the area: See whether other bathroom, kitchen, or outdoor outlets are also dead — they might be on the load side of that same GFCI.
• Look for a tripped breaker: Safely inspect your electrical panel for any breakers in the middle or “tripped” position.
• Listen and smell: If you notice buzzing, crackling, or any burning smell near the outlet, don’t touch it — turn off the breaker and call us right away.

If those quick checks don’t reveal an obvious fix, that’s usually when our customers decide it’s time for us to come out and track down the real cause.

When Not to DIY GFCI Problems

As electricians, we absolutely understand the urge to fix things yourself. But we also see the downsides when electrical troubleshooting goes wrong. We always encourage homeowners to stop and call us if:

• You’re not 100% sure which breaker controls the outlet
• You’d have to disconnect wires or open up multiple boxes to “experiment”
• You see aluminum wiring, cloth wiring, or other older materials you don’t recognize
• You’ve replaced the GFCI once and the exact same problem is still there

In situations like Mark’s — where another device had already been installed and the problem persisted — we usually find that a careful, systematic check of the wiring layout solves the mystery much faster and safer than trial and error.

How We Help Local Homeowners With GFCI Troubles

Every week, we help homeowners who are dealing with confusing issues like “half my GFCI works,” “the reset button won’t stay in,” or “my outdoor outlets keep tripping.” Our job is to track down whether it’s a simple line/load miswire, a worn-out device, or a bigger problem in the circuit.

If you’re staring at a GFCI that doesn’t make sense, you don’t have to figure it out alone. We can come out, test the circuit, correct any wiring issues, and make sure your kitchens, bathrooms, garage, and outdoor outlets are all properly protected — and working the way they should.

Give us a call, tell us what your outlet is doing (or not doing), and we’ll take it from there. We helped Mark sort through his GFCI confusion, and we’re happy to help you do the same in your home.
